Spectrocam
Compact 64-channel SiPM Photodetector Module
Description
SpectroCam is a 64-channel system designed to readout silicon photo-multipliers (SiPM) for scientific instrumentation application. Spectrocam is a stack up of two boards. The front-end board is housing the 64-channel detector (Hamamatsu S13361-6050AE x4 or S14 series, can be adapted to other SiPM) on top side and readout ASICs (Citiroc1A x2) followed by a 15-bit ADC on the bottom side. The backend board embeds a FPGA (Cyclone V) for controlling the ASICs and HV voltage module provided in the kit. Spectrocam comes with open source firmware (Quartus) and open source software in C#. A CAEN high-voltage module is provided in the kit.
Provided software allows system calibration, ASIC programming and data acquisition with graphic user interface providing direct spectrum and flood map.
Parameters
| Parameters | Value |
|---|---|
| Detector Read-Out | SiPM |
| Number of Channels | 64 |
| Signal Polarity | Positive |
| Sensitivity | Trigger on 1/3 photo-electron, 100% efficiency on first photon |
| High Voltage | CAEN A7585DU – 85V – 10mA max. Temperature compensation |
| Dynamic Range | Up to 2000 photo-electron (Dynamic range of the SIPM) |
| Single Photon Time Resolution (SPTR) | Not measured |
| Maximum Double pulse separation within same pixel | Not Measured |
| Power Consumption | |
| Outputs | USB2, RS232, User defined |
| Internal Programmable Features (Python Software) |

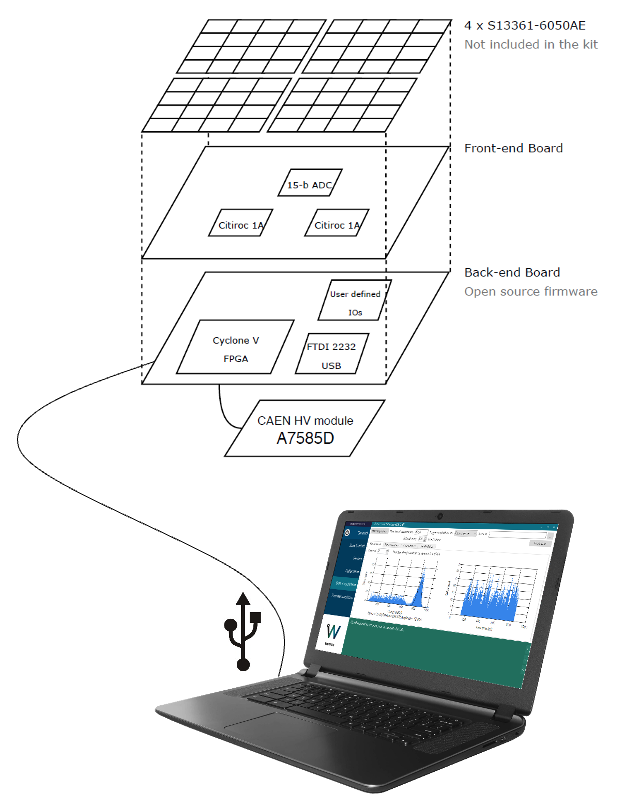

Diagram
spectrocam-blockscheme
